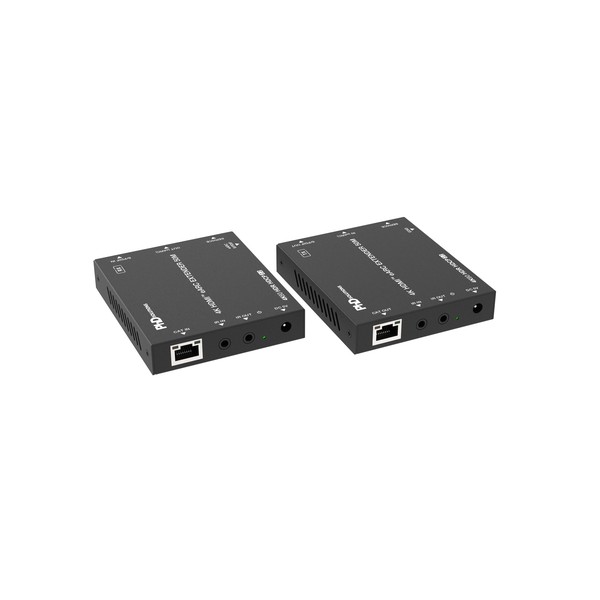

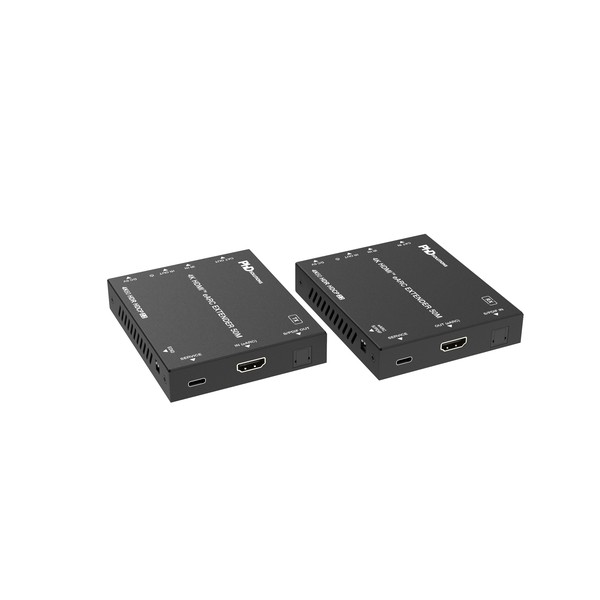

HDMI eARC SPDIF EXTENDER KIT UP TO 50M (UHD)(4K604:4:4)(HDR)(18Gb)(PoC)(eARC)(IR)(HDMI2.0)(HDCP2.2)

Features

• Compliant with HDCP 2.2 and HDMI 2.0b
• Video resolution up to 4K2K@60Hz, 4:4:4, 24-bit
• Video bandwidth of 18Gbps
• The maximum extended transmission distance via a single Cat6/6a cable:

164ft / 50 meters for 4K2K60 4:4:4;
230ft / 70 meters for 1080P

• Supports HDR, HDR10, HDR10+, Dolby Vision, and HLG
• Audio support up to LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
• eARC and ARC/SPDIF audio return: eARC PCM 7.1 192kHz, Dolby Atmos, DTS:X; ARC/SPDIF PCM 2.0, Dolby 5.1CH, DTS 5.1CH
• Supports CEC pass-through and bi-directional IR pass-through
• Advanced EDID management
• Independent SPDIF audio path for TVs without eARC support

Video Bandwidth: 18 Gbps
HDCP Compliance: HDCP 2.2
HDMI Compliance: HDMI 2.0b
Video Resolution: 480i60, 576i50, 480p60, 576p50, 720p50/60, 1080i50/60,
1080p24/25/30/50/60, 4K24/25/30, 4K50/60 4:2:0, 4K2K50/60 4:4:4;
640×480@60, 1024×768@60, 1280×768@60, 1280×800@60, 1280×1024@60, 1360×768@60, 1440×900@60, 1680×1050@60, 1920×1200@60RB
Color Depth: 8-bit, 10-bit, 12-bit
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
Audio Formats: HDMI eARC Audio: PCM 7.1CH 192KHz, Dolby Atmos, DTS:X;
ARC/SPDIF Audio: PCM 2.0, Dolby 5.1CH, DTS 5.1CH
HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
CEC: Supported
IR Level: 5Vp-p
IR Frequency: Wideband 20K – 60KHz
ESD Protection: Human Body Model: ±8KV (Air Discharge) ±4KV (Contact Discharge)

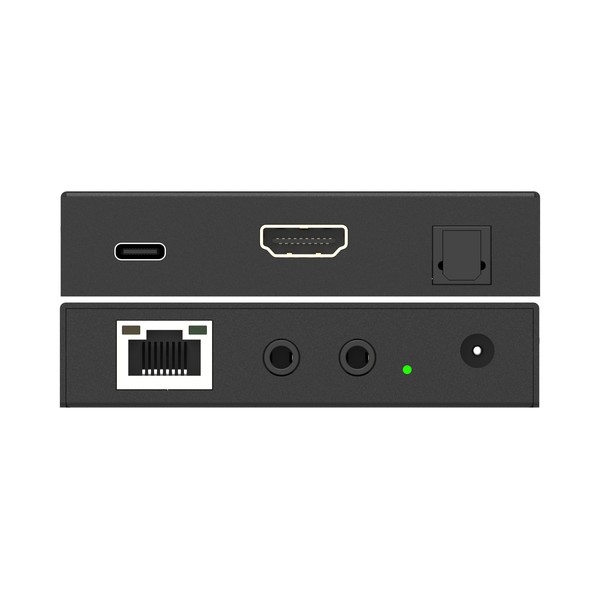

TRANSMITTER
Input Port :
1×HDMI IN (eARC) [Type A, 19-pin female] 1×IR input [3.5mm Stereo Mini-jack] 1x SERVICE [USB-C, Upgrade port]
Output Ports :
1×HD CAT Out [RJ45] 1×SPDIF Out [S/PDIF Optical] 1×IR output [3.5mm Stereo Mini-jack]

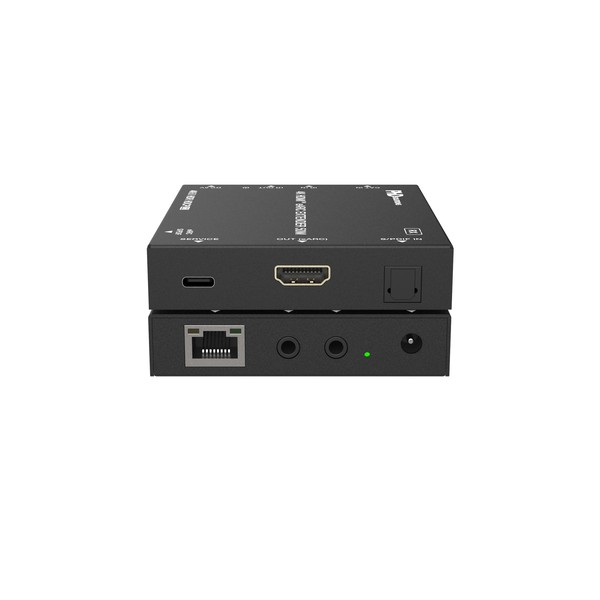

RECEIVER
Input Port :
1×HD CAT Input [RJ45] 1×SPDIF In [S/PDIF Optical] 1×IR input [3.5mm Stereo Mini-jack] 1x SERVICE [USB-C, Upgrade port]
Output Ports :
1×HDMI OUT (eARC) [Type A, 19-pin female] 1×IR output [3.5mm Stereo Mini-jack]

Dimensions:

Transmitter / Receiver:

97mm [W] x 82mm [D] x 18mm [H]
Weight: Transmitter: 199g, Receiver: 196g
Chassis Material: Metal
Silkscreen Color: Black
Operating Temperature: 0˚C – 40˚C/32˚F – 104˚F
Storage Temperature: −20˚C – 60˚C/−4˚F – 140˚F
Relative Humidity: 20 – 80% RH operating / 10 – 90% RH storage (No-condensing)
Power Supply: 5 V/2A DC (Multinational power supply, one per end)
Power Consumption: Transmitter: 4.75W (max); Receiver: 3.5W (max)
