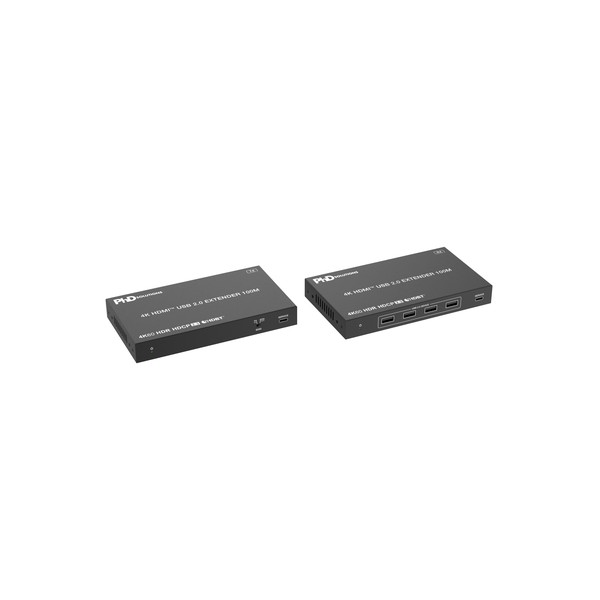

HDMI USB2.0 EXTENDER KIT UP TO 100M (UHD)(4K604:4:4)(HDR)(18Gb)(PoC)(eARC)(IR)(RS232) (HDMI2.0)(HDCP2.3)

Features

• HDCP 2.3 / 2.2 / 1.x compliant
• Supports 18Gbps video bandwidth
• The maximum extended transmission distance via a single Cat5e/6 cable:

328ft / 100 meters for 4K@60Hz 4:4:4;
328ft / 100 meters for 1080P

• USB 2.0 signal transmission (supporting KVM)
• Bi-directional IR, RS-232 control and CEC pass-through
• Audio de-embedding on the receiver
• Advanced EDID management (Copy TV / STD)
• HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
• Bi-directional PoC (Power over Cable), power required on one end only
• Compact design for easy and flexible installation

Video Bandwidth: 18 Gbps
HDCP Compliance: HDCP 2.3 / 2.2 / 1.x
HDMI Compliance: HDMI 2.0b
Video Resolution: Up to 4K@60Hz (4:4:4)
All available input/output resolutions: 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50), 3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz
Color Depth: 8-bit, 10-bit, 12-bit
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
HDMI Audio Formats (Pass-Though): LPCM, Dolby Digital, Dolby Digital+, Dolby Digital EX,
Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
CEC: Supported
HDMI over CAT: HDBaseT
IR Level: 5Vp-p
IR Frequency: Wideband 20K – 60KHz
ESD Protection: Human Body Model: ±8KV (Air Discharge) ±4KV (Contact Discharge)

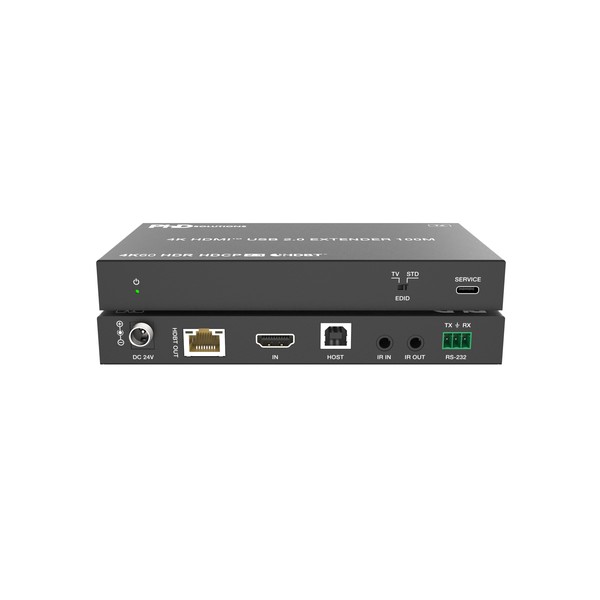

TRANSMITTER
Input Port :
1×HDMI Type A [19-pin female] 1×IR input [3.5mm Stereo Mini-jack] 1×RS-232 [3-pin 3.5mm Phoenix connector] 1×HOST [USB-B, USB 2.0 for KVM] 1x SERVICE [USB-C, Update port]

Output Ports :
1×HD CAT Out / HDBaseT Out [RJ45] 1×IR output [3.5mm Stereo Mini-jack]

RECEIVER
Input Port :
1×HD CAT Input / HDBaseT In [RJ45] 1×IR input [3.5mm Stereo Mini-jack] 1×RS-232 [3-pin 3.5mm Phoenix connector] 1x SERVICE [USB-C, Update port]

Output Ports :
1×HDMI Type A [19-pin female] 1×Audio Out [3.5mm audio jack] 4×USB 2.0 Device [USB-A, for KVM peripherals] 1×IR output [3.5mm Stereo Mini-jack]

Dimensions:

Transmitter / Receiver:

157mm [W] x 88mm [D] x 20mm [H]
Weight: Transmitter: 371g, Receiver: 378g
Chassis Material: Metal
Silkscreen Color: Black
Operating Temperature: 0˚C – 40˚C/32˚F – 104˚F
Storage Temperature: −20˚C – 60˚C/−4˚F – 140˚F
Relative Humidity: 20 – 80% RH operating / 10 – 90% RH storage (No-condensing)
Power Supply: 24 V/1A DC 100~240V AC 50/60Hz (Locking Connector); supports bi-directional PoC
Power Consumption: (PoC) Transmitter: 28.32W; (PoC) Receiver: 25.68W (max)
