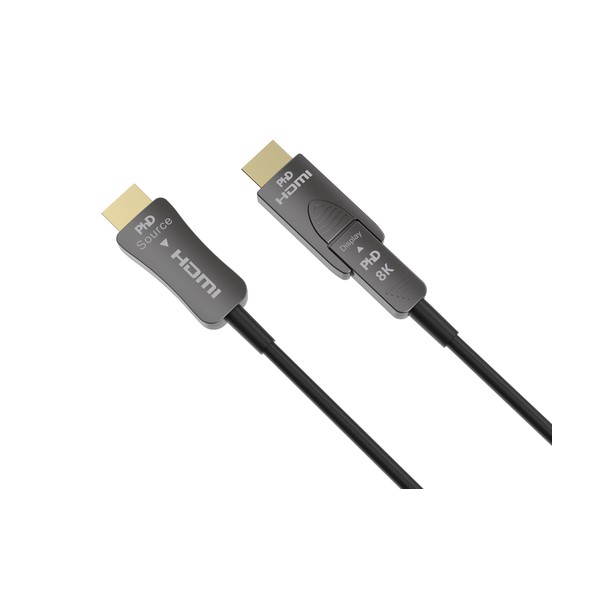

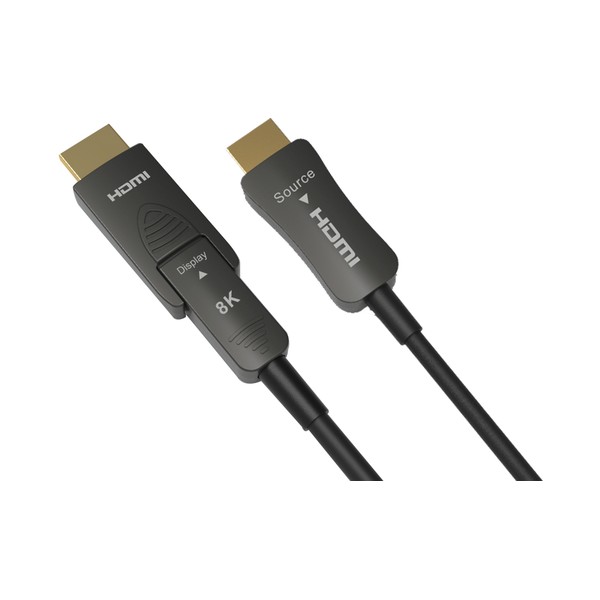

HDMI 8K AOC Fiber Active Optical Cables with detachable connector

    he HD-AOC-8K-D is an HDMI™ 2.1 Active Optical Cable (AOC) with a hybrid fibre-and-copper core and gold-plated HDMI™ Type-A male connectors, available in lengths from 5m to 25m (16-82ft). It carries uncompressed UHD video up to 8K@60Hz (YUV 4:4:4) with bandwidth up to 48Gbps, converting HDMI™ electrical signals to optical for stable, loss-free long-distance transmission free from electromagnetic interference. Its slim, lightweight fibre core allows tight bend radii and easy routing, while the detachable display (RX) connector lets the cable be pulled through conduit before reconnecting the HDMI™ head. Fully plug-and-play with no external power, it supports HDCP 2.3, HDR and advanced audio including Dolby TrueHD and DTS-HD Master Audio, making it ideal for home cinema, conference rooms and commercial AV installations.

    SKU: HD-AOC-8K-D Category: Tags: , , , , , ,

    Features

    • HDMI 2.1 and HDCP 2.3 compliant
    • Data transfer rates up to 48Gbps
    • Video resolutions up to 8K@60Hz (YUV 4:4:4), 8K@30Hz and 4K@120Hz
    • HDR pass-through: HDR, HDR10, HDR10+, Dolby Vision, HLG
    • Supports VRR, ALLM, QMS, QFT and SBTM
    • Supports 3D video formats; maximum resolution 4096 x 2560 @ 60Hz
    • Advanced audio: LPCM, Dolby TrueHD, DTS-HD Master Audio, DSD; 8-channel LPCM up to 192 kHz / 24-bit
    • Supports Lip Sync (audio/video synchronisation) and CEC control
    • Hybrid copper and optical fibre construction for lossless long-distance transmission
    • High-performance photoelectric conversion chip
    • Available in lengths from 5 m to 25 m (16-82 ft)
    • No external power supply required, plug and play
    • Directional design: Source connector to source device, Display connector to display
    • Detachable display (RX) connector for easy conduit installation
    • Gold-plated connectors, nylon-braided PVC jacket and double shielding

    Video Bandwidth: Up to 48 Gbps
    HDCP Compliance: HDCP 2.3
    HDMI Compliance: HDMI 2.1
    Video Resolution: Up to 8K@60Hz (YUV 4:4:4), 8K@30Hz, 4K@120Hz; max 4096 x 2560 @ 60Hz
    Color Depth: 8-bit, 10-bit, 12-bit
    Color Space: YUV 4:4:4
    HDMI Audio Formats: LPCM, Dolby TrueHD, DTS-HD Master Audio, DSD
    Available Lengths: 5m / 10m / 15m / 20m / 25m
    ESD Protection: Human Body Model: ±8KV (Air Discharge) ±4KV (Contact Discharge)

    CONNECTORS

    Source end :
    1×HDMI Type A male (gold-plated) — connects to source device
    Display end :
    1×HDMI Type A male (gold-plated), detachable (Type D to Type A) — connects to display
    Outer Diameter: 4.8mm
    Cable Color: Black
    Conductor: Optical Fibre + Tinned Copper
    Chip: Optoelectronic conversion chip
    Jacket: PVC, nylon-braided
    Connector Casing: Metal, gold-plated
    Power Supply: No external power required
    Applicable Devices: Camera, Computer, DVD/Blu-ray Player, TV box, HDTV, Projector, Home Theatre, Multimedia, Monitor
    Operating Temperature: 0˚C – 40˚C/32˚F – 104˚F
    Storage Temperature: −20˚C – 60˚C/−4˚F – 140˚F
    Relative Humidity: 20 – 90% RH (No-condensing)

    HD-AOC-8K-D User Manual_V1.0

    • 1 x HD-AOC-8K-D HDMI™ Active Optical Cable with detachable connector
