8X8 HDBaseT 4K60 40-70M AV MATRIX WITH 8 MIRROR HDMI OUTPUTS (PoC)(IR)(4K60 4:4:4)(HDR)(18Gb)(ARC)(LAN)

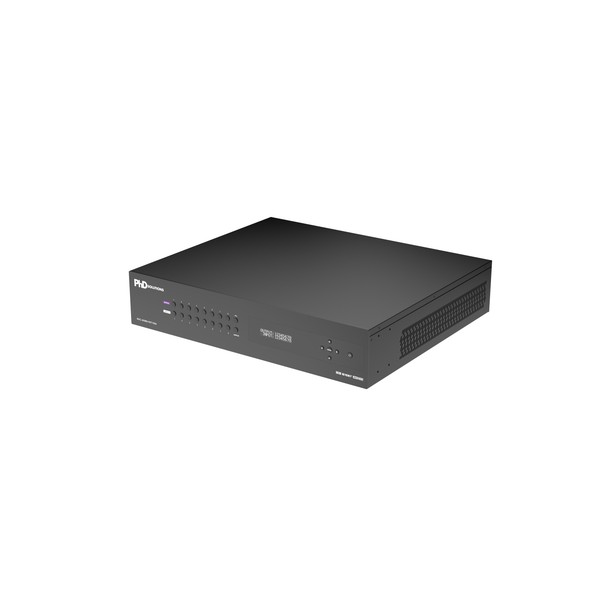

The MXC-4K888-HDT100A-KIT is an 18Gbps 8×8 HDMI™ and HDBaseT matrix that distributes eight HDMI™ sources to up to sixteen displays, with each of the eight HDMI™ outputs mirrored to a matching HDBaseT output for simultaneous transmission over HDMI™ and CAT cable. It supports video up to 4K@60Hz (YUV 4:4:4), with HDBaseT outputs 1-4 extending 4K to 40m (131ft) or 1080p to 70m, and outputs 5-8 extending 4K to 70m (230ft) or 1080p to 100m, over a single CAT5e/6/7 cable. It includes a full 28 x 16 audio matrix with ARC return from connected HDMI™ and HDBaseT displays, audio de-embedding to coaxial and analogue (L/R) outputs, IR matrix switching, bi-directional RS-232, Ethernet/LAN pass-through over HDBaseT, advanced EDID management and 24V PoC on all HDBaseT outputs. Control is via the front-panel buttons and OLED display, IR remote, RS-232, LAN and Web GUI. Supplied with four 40m and four 70m HDBaseT receivers, it is ideal for larger residential and commercial AV distribution.

Control drivers are available for 3rd Party control systems (NICE-ELAN, Control4, RTI, Crestron & Savant ) for **HDMI switching ONLY**. AV switching will be released for Control 4 and NICE-ELAN soon.

SKU: MXC-4K888-HDT100A-KIT Categories: , Tags: , , , , , , , , , , , , , , , ,

Features

  • HDCP 2.2 and HDCP 1.4 compliant
  • 8x HDMI inputs, 8x HDMI outputs and 8x HDBaseT mirrored outputs
  • Video resolution up to 4K@60Hz 4:4:4, compliant with HDMI 2.0b
  • HDMI ports support 18Gbps lossless uncompressed video bandwidth
  • 18Gbps HDBaseT signal transmission (lossless uncompressed video)
  • 4K to 1080P downscaling
  • Supports formats including Dolby Vision, HDR10+ and HLG
  • HDBaseT video transmission distance over a single Cat 5e/6/7 cable:

Outputs 1-4: 131ft / 40m (4K) or 230ft / 70m (1080P);
Outputs 5-8: 230ft / 70m (4K) or 328ft / 100m (1080P)

  • HDMI audio pass-through up to 7.1 CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
  • 28 x 16 audio matrix: 28 audio inputs (8x HDMI, 8x HDMI ARC, 8x HDBaseT ARC, 2x analogue L/R, 1x optical, 1x coaxial) and 16 audio outputs (8x coaxial/analogue, 8x HDMI embedded)
  • ARC support: audio from HDMI and HDBaseT displays routed back to coaxial or analogue outputs
  • Coaxial and L/R analogue audio de-embedding
  • Ethernet / LAN pass-through over HDBaseT (to 70m receivers only)
  • IR matrix and audio matrix switching
  • Advanced EDID management
  • 24V PoC on all HDBaseT outputs
  • Control via front panel buttons, IR remote, RS-232, LAN, and Web GUI

Video Bandwidth: 18 Gbps
HDCP Compliance: HDCP 2.2 and HDCP 1.4
HDMI Compliance: HDMI 2.0b
Video Resolution: Up to 4K@60Hz (4:4:4)
All available input/output resolutions: 640x480p60Hz, 800x600p60Hz, 1024x768p60Hz, 1280x1024p60Hz, 1360x768p60Hz, 1440x900p60Hz, 1440x1050p60Hz, 1600x1200p60Hz, 1920x1200p60Hz, 720x480i59.94Hz(480i59), 720x480p59.94Hz(480p59), 720x576i50Hz(576i50), 720x576p50Hz(576p50), 1280x720p50Hz(720p50), 1280x720p59.94Hz(720p59), 1280x720p60Hz(720p60), 1920x1080i50Hz(1080i50), 1920x1080i59.94Hz(1080i59), 1920x1080i60Hz(1080i60), 1920x1080p23.98Hz(1080p23), 1920x1080p24Hz(1080p24), 1920x1080p25Hz(1080p25), 1920x1080p29.97Hz(1080p29), 1920x1080p30Hz(1080p30), 1920x1080p50Hz(1080p50), 1920x1080p59.94Hz(1080p59), 1920x1080p60Hz(1080p60), 3840x2160p23.98Hz(2160p23), 3840x2160p24Hz(2160p24), 3840x2160p25Hz(2160p25), 3840x2160p29.97Hz(2160p29), 3840x2160p30Hz(2160p30), 3840x2160p50Hz(2160p50), 3840x2160p59.94Hz(2160p59), 3840x2160p60Hz(2160p60), 4096x2160p23.98Hz, 4096x2160p24Hz, 4096x2160p25Hz, 4096x2160p29.97Hz, 4096x2160p30Hz, 4096x2160p50Hz, 4096x2160p59.94Hz, 4096x2160p60Hz
Color Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Color Depth: 12-bit (4K), 16-bit (1080P)
HDMI Audio Formats (Pass-Through): PCM 2.0 / 5.1 / 7.1CH, Dolby Digital/Plus/EX, Dolby True HD,
DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
Coax Audio Formats: PCM 2.0, Dolby Digital / Plus, DTS
L/R Audio Formats: PCM 2.0
Audio Matrix: 28 inputs x 16 outputs
Audio Matrix Inputs: 8x HDMI audio, 8x HDMI ARC audio, 8x HDBaseT ARC audio, 2x analogue (L/R), 1x optical (S/PDIF), 1x coaxial (S/PDIF)
Audio Matrix Outputs: 8x coaxial/analogue audio (PCM on coaxial and analogue; multi-channel on coaxial only), 8x HDMI embedded audio
HDR Formats: 4:4:4, 4:2:2, 4:2:0 (10, 12-bit deep colour); HDR10, HDR10+, Dolby Vision, HLG
Ethernet: LAN pass-through over HDBaseT (70m receivers); 1x TCP/IP control [RJ45] IR Level: 5Vp-p
IR Frequency: Wideband 20KHz – 60KHz
ESD Protection: Human Body Model: ±8KV (Air Discharge) ±4KV (Contact Discharge)

MATRIX
Input Ports :
8×HDMI IN [HDMI Type A, 19-pin female] 10×IR IN [3.5mm Stereo Mini-jack] 2×L/R Audio IN [3.5mm Stereo Mini-jack] 1×S/PDIF Audio IN (Optical)
1×S/PDIF Audio IN (Coax)
1×TCP/IP [RJ45] 1×RS-232 [D-Sub 9]

Output Ports :
8×HDMI OUT [HDMI Type A, 19-pin female] 8×HDBaseT OUT [RJ45] 9×IR OUT [3.5mm Stereo Mini-jack] 8×RS-232 [3-pin Phoenix connector] 8×S/PDIF Audio OUT (Coax)
8×L/R Audio OUT [3.5mm Stereo Mini-jack] 1×HDBaseT Ethernet [RJ45] 1×USB [USB Type A]

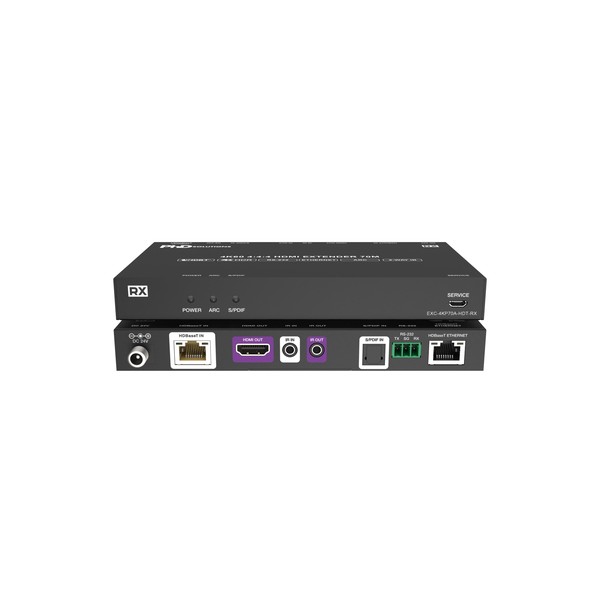

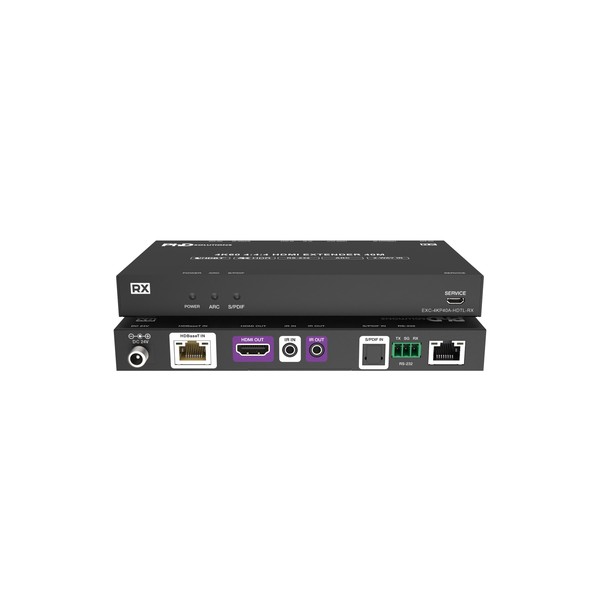

HDBaseT RECEIVER (40m / 70m)
Input Ports :
1×HDBaseT IN [RJ45] 1×IR IN [3.5mm Stereo Mini-jack] 1×S/PDIF IN (Optical)
Output Ports :
1×HDMI OUT [HDMI Type A, 19-pin female] 1×IR OUT [3.5mm Stereo Mini-jack] Control Ports :
1×SERVICE [Micro USB, Update port] 1×RS-232 [3-pin Phoenix connector] 1×HDBaseT Ethernet [RJ45] (70m receiver only — the 40m receiver has no Ethernet port)

Dimensions:

Matrix: 440mm [W] x 372.5mm [D] x 88.6mm [H]

Receiver: 165mm [W] x 88.3mm [D] x 20mm [H]
Weight: Matrix: 7kg; Receiver: 370g
Chassis Material: Metal
Silkscreen Color: Black
Operating Temperature: 0˚C – 40˚C/32˚F – 104˚F
Storage Temperature: −20˚C – 60˚C/−4˚F – 140˚F
Relative Humidity: 20 – 80% RH operating / 10 – 90% RH storage (No-condensing)
Power Supply: AC 100~240V 50/60Hz
Power Consumption: 128W (max)

MXC-4K888-HDT100A-KIT User Manual_V1.0





Control4_PHDSolutions_200_ECO_MXC-4K862-HDTL__MXC-4K888-HDT150

Crestron_PHDsolutions_ECOseries_MXC-4K862-HDTL_MXC-4K888-HDT150_v2

ELAN PhD Solutions ECO_MXC-4K862-HDTL_MXC-4K888-HDT150

RTI_PHD_SOLUTIONS_2.0 ECO_MXC-4K862-HDTL_MXC-4K888-HDT150 i

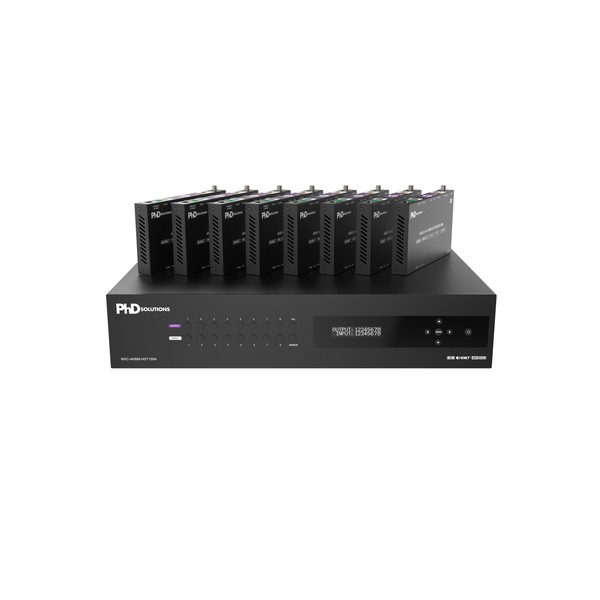

  • 1 x MXC-4K888-HDT100A 18Gbps 8×8 HDMI™ HDBaseT Matrix
  • 4 x EXC-4KP40A-HDTL HDBaseT Receivers (40m)
  • 4 x EXC-4KP70A-HDT HDBaseT Receivers (70m)
  • 1 x YKQ-015 Matrix IR Remote
  • 1 x 100~240V AC 50/60Hz power cable
  • 1 x RS-232 serial cable (1.5m, male to female head)
  • 16 x 3-pin Phoenix connectors
  • 9 x IR blaster cables (1.5m)
  • 10 x 20~60KHz IR receiver cables (1.5m)
  • 18 x Mounting ears (matrix and receivers)
  • 40 x Machine screws (matrix and receivers)
  • 1x User manual
